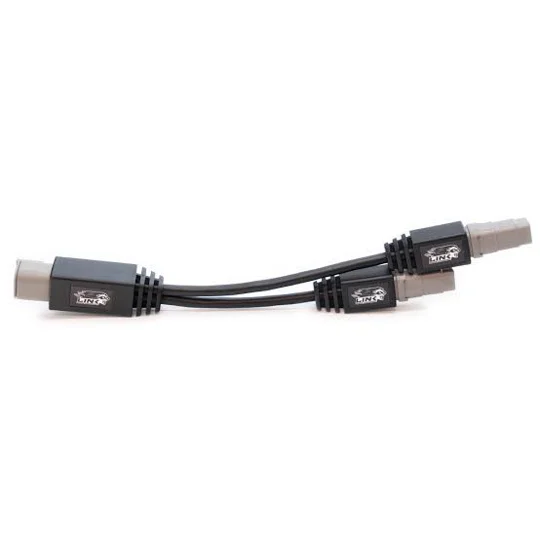

CANTEE - Link CAN Splitter Cable

The Link CAN Splitter Cable is required to connect additional CAN devices.

Communications
Pin 4: CAN H

Pin 3: CAN L

Pin 2: Ground

Pin 1: 12V

Product Dimensions
280mm(L)x34mm(W)x23mm(H)

11.02in(L)x1.34in(W)x0.91in(H)

Product Weight
200 grams (7.05 ounces)

Material
Loom 1: 80mm

Loom 2: 120mm

Electrical
Maximum Input Voltage: 300V

Maximum Continuous Current Draw: 3A

Gauges of wire: 20AWG/0.5mm2

What's in the Box
Link CAN Splitter Cable

Raw Calibration Specs
Pin 1: 12V

Pin 2: Ground

Pin 3: CAN Low

Pin 4: CAN High

Connector
DTM4 Female to 2 x DTM4 Male. Includes CAN and Power Wiring.
