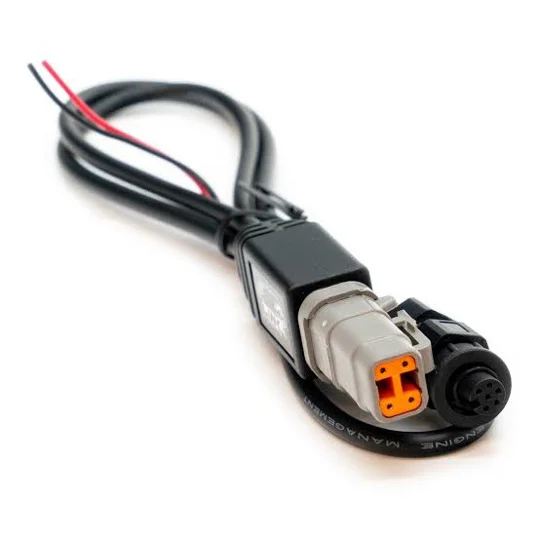

CAN Connection Cable for Link WireIn ECU's (6Pin CAN)

The Link CANLTW is required to add CAN communication to Wire-in ECU's which have CAN accessible via the 6-Pin round CAN connector on the front of the ECU.

Models Supported
Compatible ECU's:

G5 Voodoo Pro (CAN1)

G4X/G4+ Xtreme (CAN1)

G4X/G4+ Fury (CAN1)

G4+ Force (CAN1)

G4+ Thunder (CAN1)


Communications
Pin 4: CAN H

Pin 3: CAN L

Pin 2: Ground

Pin 1: 12V

Product Dimensions
570mm(L)x20mm(W)x20mm(H)

22.44in(L)x0.79in(W)x0.79in(H)

Product Weight
50 grams (1.76 ounces)

Electrical
Maximum Input Voltage: 300V

Maximum Continuous Current Draw: 3A

Gauges of wire: 20AWG/0.5mm2

Misc.
300mm. Flying lead length 500mm.

What's in the Box
CANLTW - Link CAN Connection Cable for Wire-in ECU's - Fury/Xtreme/Thunder

Connector
DTM4 Male to LTW 6Pin.

12V & GND Flying Leads.
